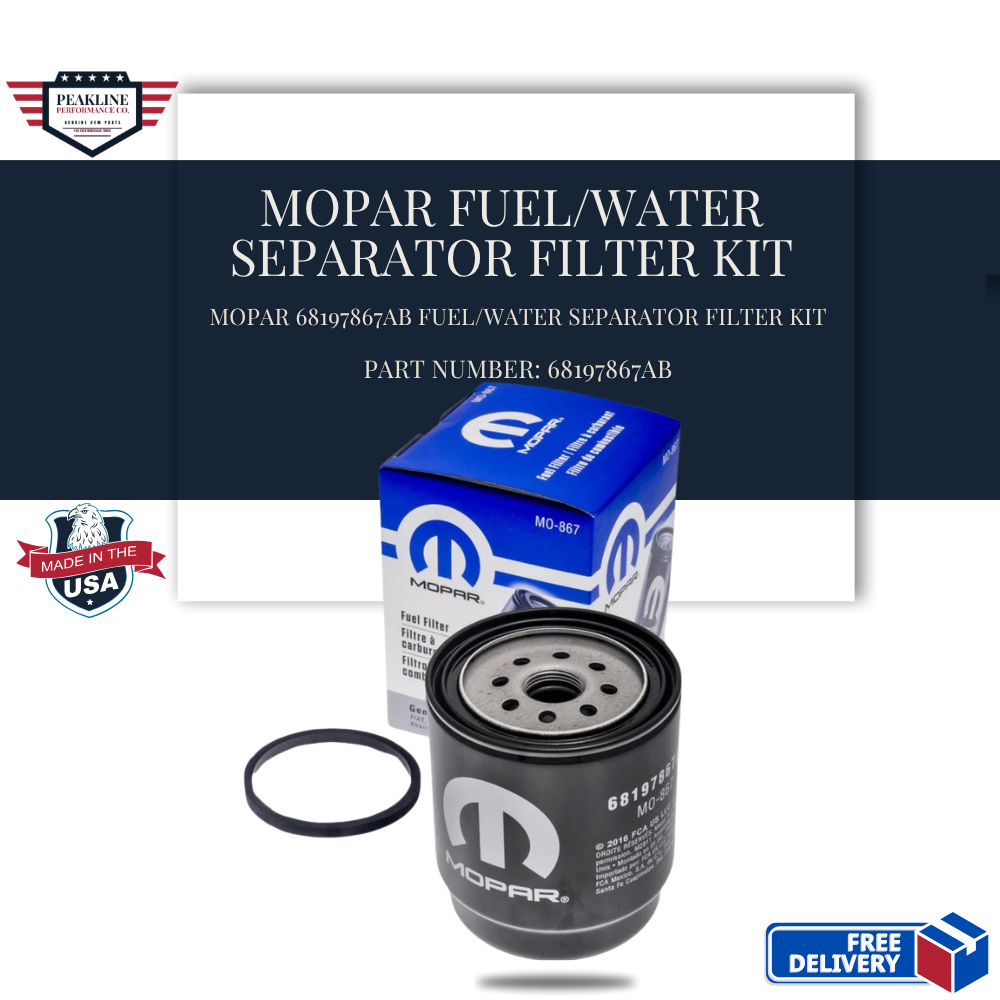

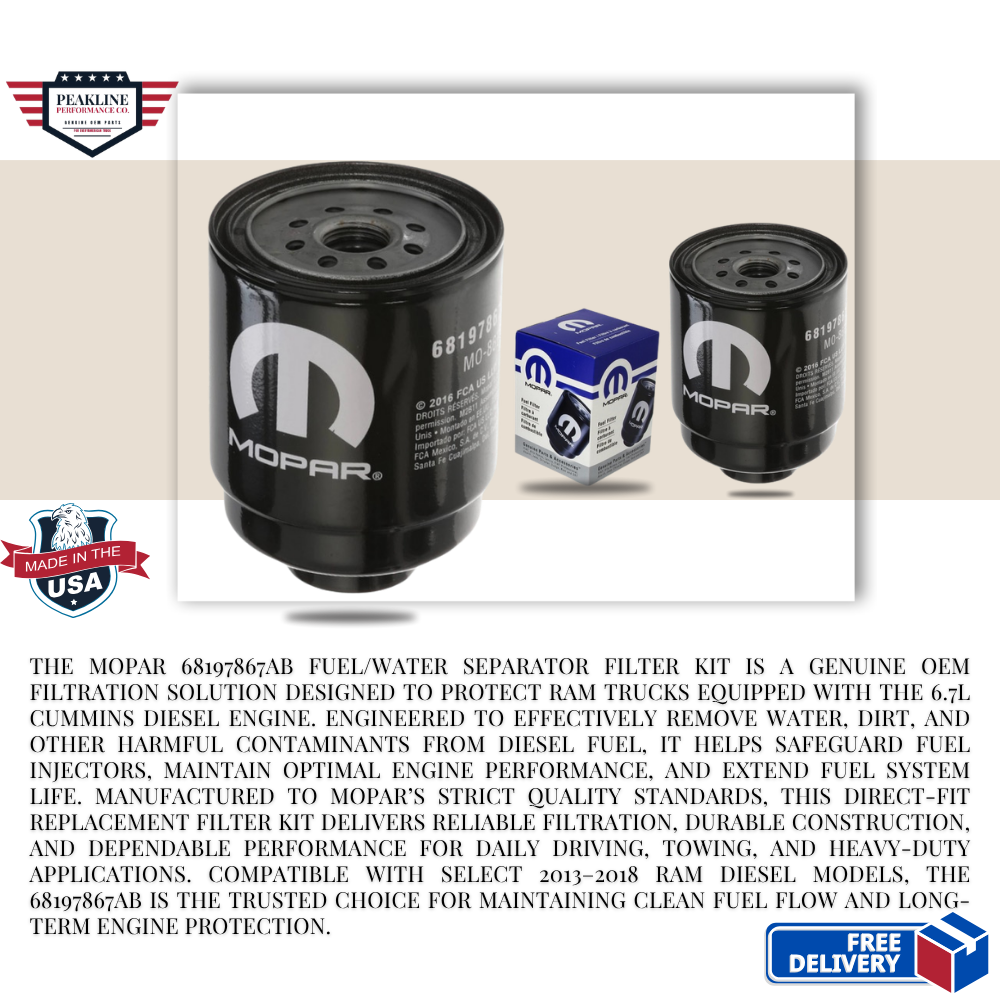

Mopar 68197867AB Fuel/Water Separator Filter Kit
Mopar 68197867AB Fuel/Water Separator Filter Kit
The Mopar 68197867AB is a genuine OEM fuel/water separator filter designed for Ram trucks equipped with the 6.7L Cummins diesel engine. This filter effectively removes water & contaminants from diesel fuel, ensuring optimal engine performance & longevity.
Product Overview
- Part Number: 68197867AB
- Replaces: 68197867AA
- Filter Type: Spin-on fuel/water separator
- Material: Metal housing
- Weight: Approximately 1.3 lbs
- Dimensions: Diameter: 5.2 inches
Vehicle Compatibility
This filter is compatible with the following Ram models equipped with the 6.7L Cummins diesel engine:
- Ram 2500: 2013–2018
- Ram 3500: 2013–2018
- Ram 4500: 2013–2018
- Ram 5500: 2013–2018
Note: Always verify compatibility with your vehicle’s VIN or consult the owner’s manual to ensure proper fitment.
Cross Reference
The Mopar 68197867AB fuel/water separator filter can be cross-referenced with the following part numbers:
- Fleetguard: FS20089
- Donaldson: P551833
- Baldwin: BF46031
- Fram: PS11937
- WIX: WF10112
- NAPA: 600112
- Luberfiner: LFF5106
Note: While these cross-references are compatible, it’s recommended to use the OEM Mopar 68197867AB filter for optimal performance.
Key Features
- Efficient Filtration: Removes water, dust, dirt, and other contaminants from diesel fuel, protecting the engine from potential damage.
- Durable Construction: Heavy-duty metal housing resists bending during installation and removal.
- Leakage Resistance: Superior O-ring sealing components ensure a tight, leak-free fit.
- OEM Quality: Manufactured to meet or exceed original equipment specifications, ensuring proper fit and function.
❓ FAQ
Q: Where is this fuel/water separator filter located on my Ram truck?
A: The Mopar 68197867AB is the rear, frame-mounted primary fuel filter. On 2013–2018 Ram 2500 through 5500 trucks, it is located underneath the truck bed, mounted to the frame rail right next to the fuel tank. This is separate from the secondary fuel filter, which is located under the hood in the engine bay.
Q: Does this filter include the built-in sensor, or do I reuse the old one?
A: This filter has a threaded port at the bottom designed to accept the factory Water-In-Fuel (WIF) sensor. The replacement filter does not come with a new sensor; you will unscrew your existing WIF sensor from the old filter, swap the rubber O-ring seal, and thread it into the bottom of the new Mopar filter before installation.
Q: What is the correct replacement procedure after spinning the new filter on?
A: Because this filter is installed empty, you must prime the fuel system before starting the truck to prevent running the fuel pump dry. Do not attempt to crank the engine immediately. Instead, turn the ignition key to the "RUN" position (without starting the engine) for about 10–15 seconds to let the electric lift pump push fuel back into the filter. Repeat this key cycle 3 to 5 times before starting the engine, then check the frame rail for any signs of leaks.
