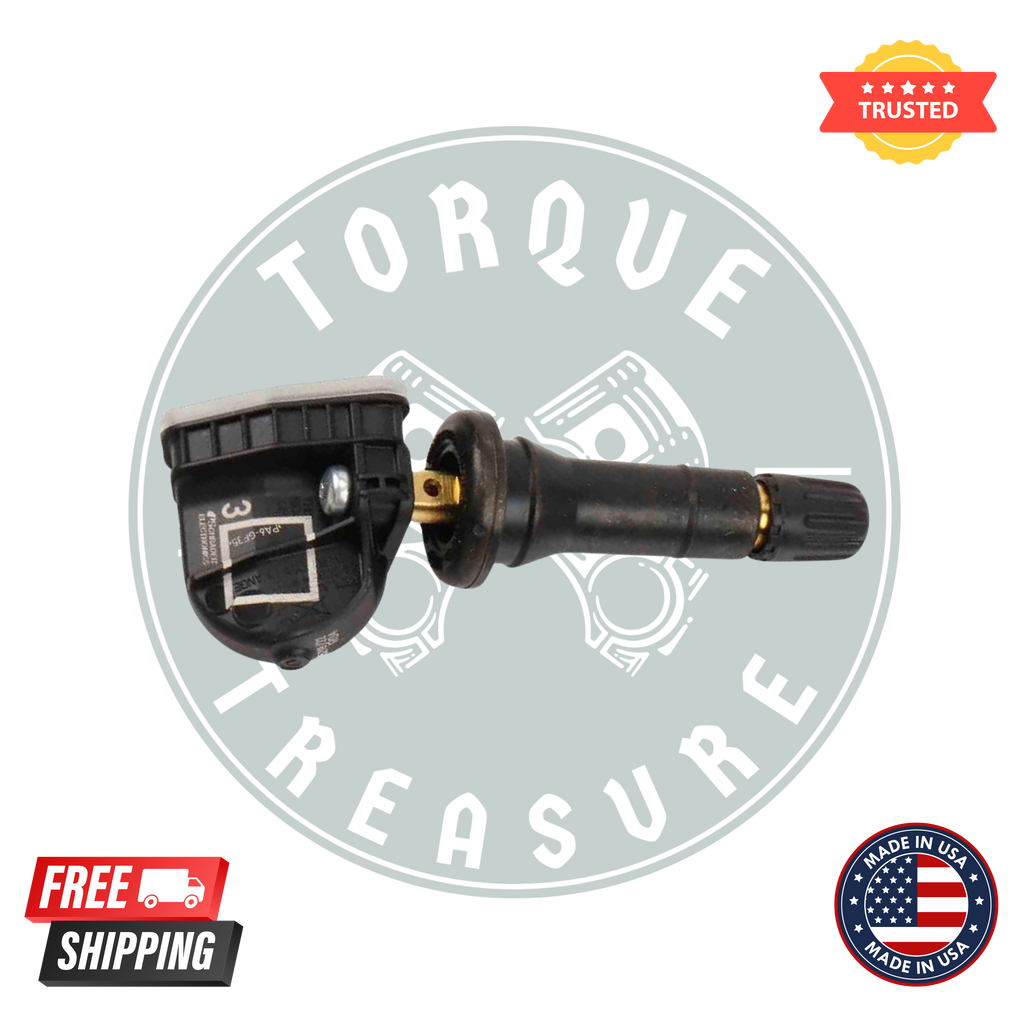

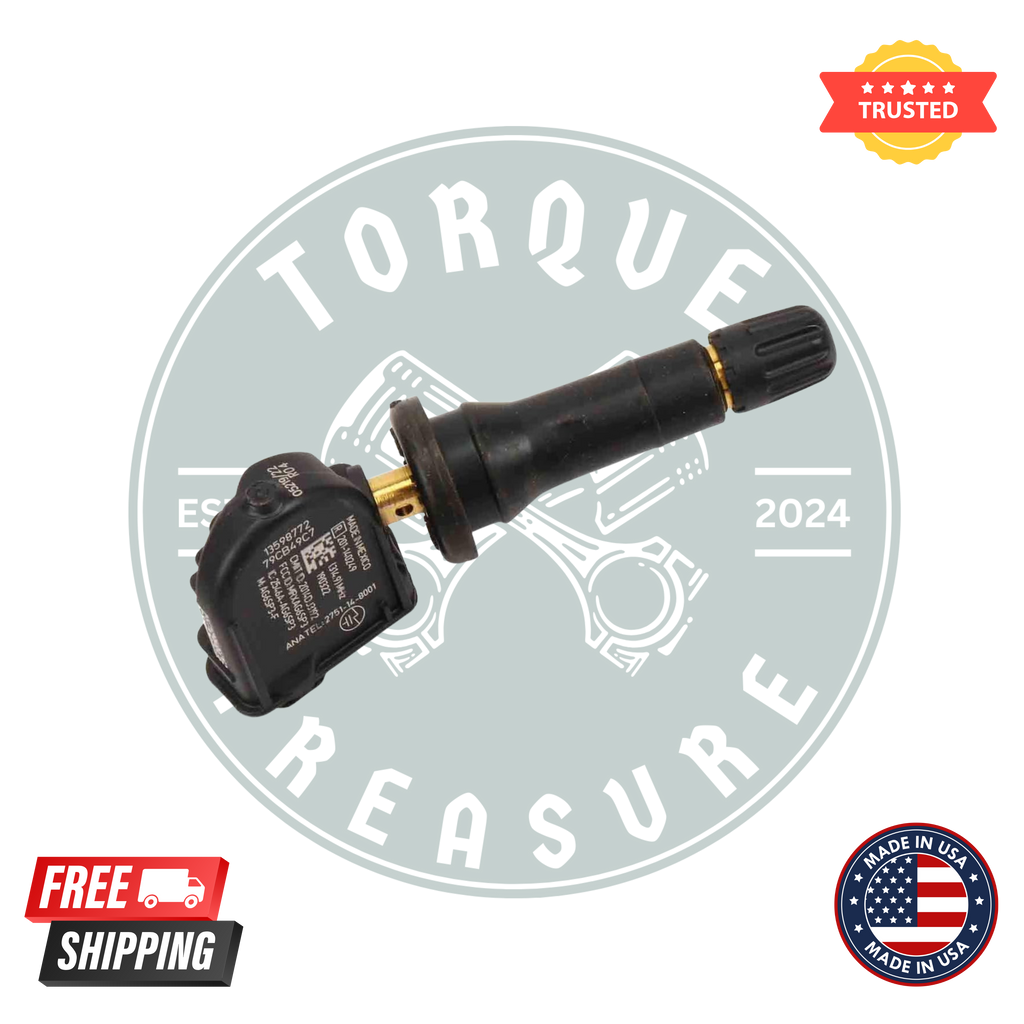

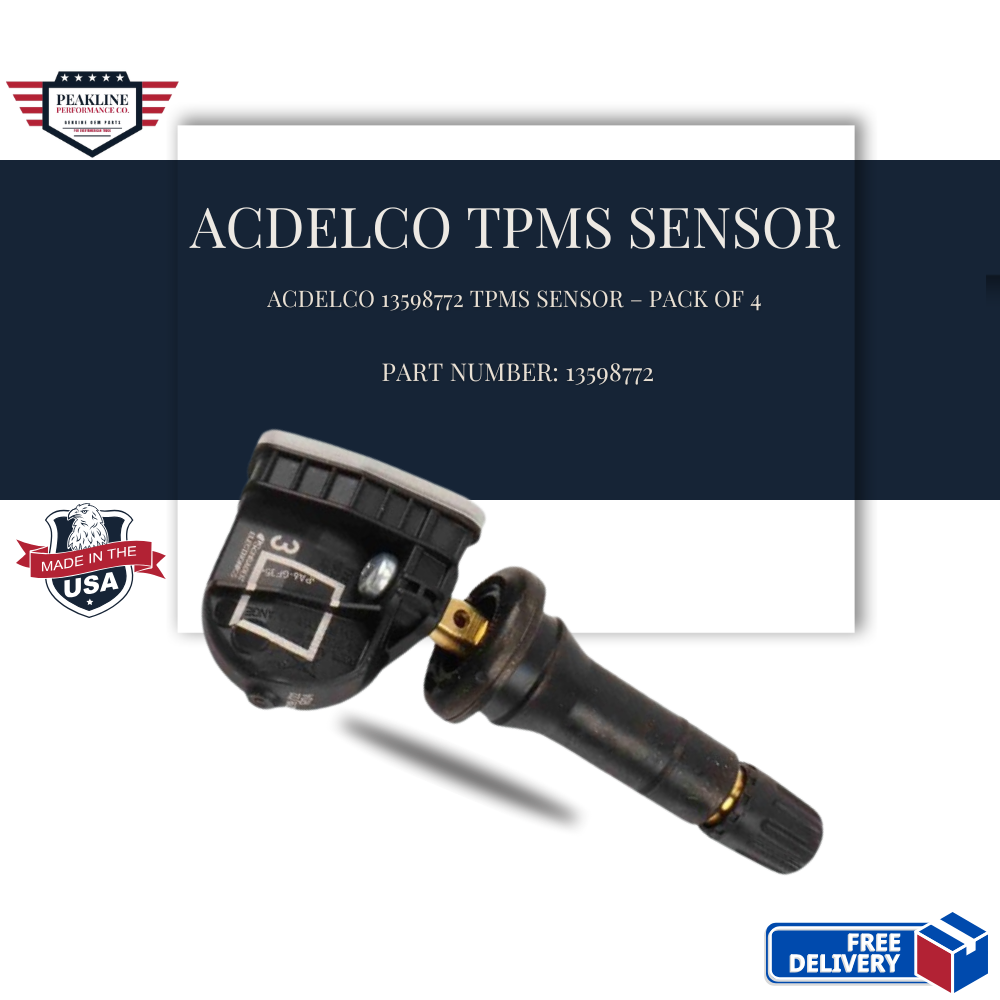

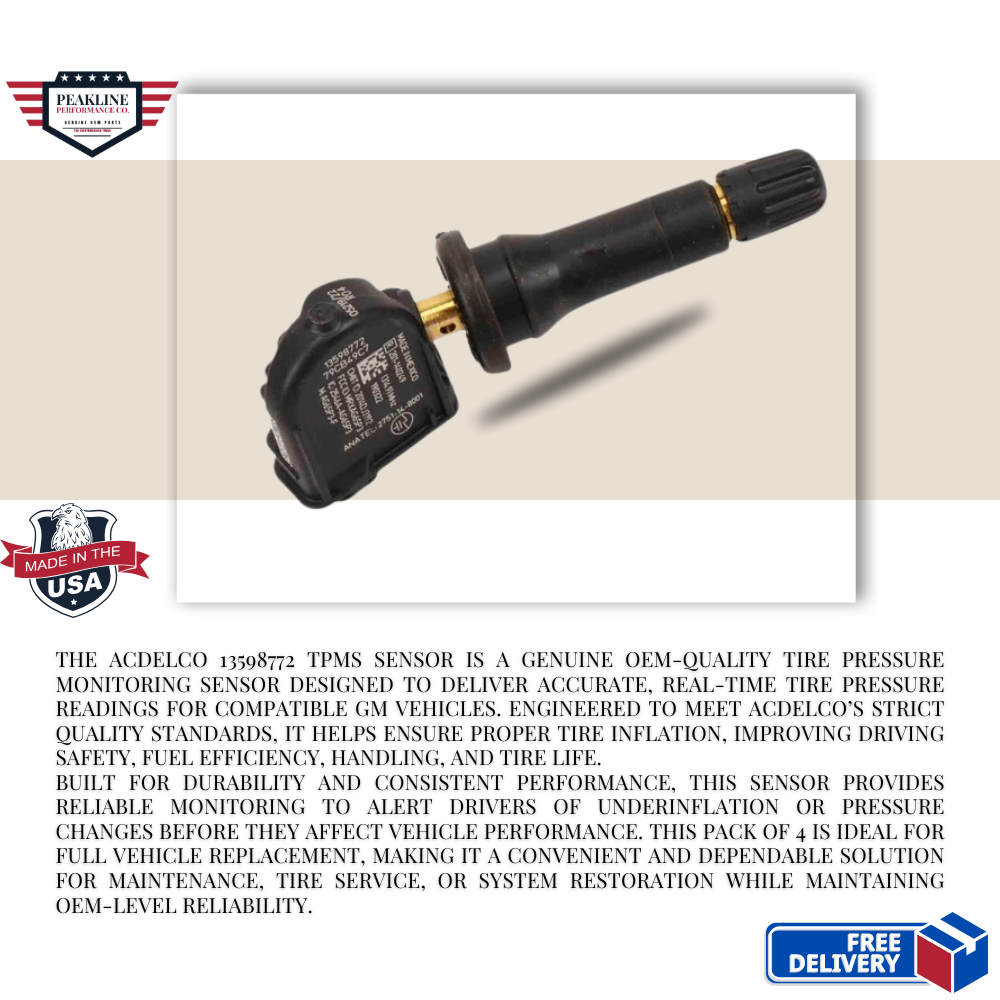

Ensure safe driving and precise tire monitoring with this 4-pack of ACDelco 13598772 Tire Pressure Monitoring Sensors (TPMS). Built to meet or exceed GM specifications, these OEM sensors deliver accurate, real-time tire pressure data — keeping your vehicle safe, efficient, and warning-light free.


Key Features:

  • Includes 4x ACDelco 13598772 TPMS sensors
  • Genuine GM Original Equipment (OEM) part
  • Pre-programmed for direct installation
  • Measures tire pressure in real-time
  • Helps improve fuel efficiency, extend tire life, and enhance safety
  • Built-in valve stem and sensor module


Vehicle Compatibility:

Compatible with many GM vehicles, including:

  • Chevrolet Malibu / Cruze / Impala / Sonic / Volt / Spark
  • Buick Regal / LaCrosse / Verano / Encore
  • GMC Terrain
  • Cadillac XTS / ATS / CT6
  • Typically used in passenger cars and crossovers (2012–2020)
🔍 Always confirm compatibility using your VIN or check existing sensor part number.


Cross Reference Part Numbers:

  • GM: 13598772, 13516165
  • Schrader: 33500 (OEM supplier)
  • Denso: 550-0101
  • VDO/Continental: SE10001HP


What’s Included:

  • 4x ACDelco 13598772 TPMS Sensors
  • Pre-installed valve stems
  • OEM packaging or bulk-pack sealed


Installation Note:

  • Sensors come pre-programmed for GM vehicles
  • TPMS relearn procedure required after installation (scan tool or relearn drive cycle)
  • Compatible with GM Tech2, TPMS tools, and most aftermarket programmers


Shipping & Handling:

  • Ships within 1–2 business days
  • Fast, tracked delivery anywhere in the USA
  • Ideal for repair shops, tire centers, and fleet service



Choose ACDelco 13598772 – the trusted OEM TPMS sensor for reliable performance and a perfect fit.

Factory Fit. Accurate Readings. Complete Safety.



❓ FAQ

Q: Which specific vehicle models and model years is this 4-pack of TPMS sensors designed for?

A: The ACDelco 13598772 TPMS sensors are engineered primarily for General Motors passenger cars and compact crossovers, covering production years 2012 through 2020. They are a direct factory match for models like the Chevrolet Malibu, Cruze, Impala, Sonic, Volt, and Spark, as well as the GMC Terrain, Buick Regal, LaCrosse, Verano, and Encore, and Cadillac ATS, XTS, and CT6.

Q: Do these sensors require a special programming tool before tire shops can install them?

A: No programming is necessary. Because these are genuine factory OEM ACDelco parts, they are pre-programmed out of the box with GM's dedicated radio frequency and communication protocols. You do not need a tire shop tool to "flash" a vehicle profile onto the chip. However, once the sensors are physically mounted inside your tires, you will still need to perform a quick vehicle relearn sequence so the vehicle's computer can register the new unique sensor IDs.

Q: What are the exact step-by-step instructions for performing a manual TPMS relearn on these GM vehicles?

A: Many GM passenger cars and crossovers feature a manual TPMS Relearn Mode that can be activated from the driver's seat. While a basic, inexpensive handheld GM TPMS activation tool (like the EL-50448) makes this process incredibly fast, many models also allow you to trigger pairing manually by letting air out of the tires sequentially:

1.Prepare the vehicle and dashboard menu:Engage the parking brake for safety.

Turn the ignition switch to the RUN position (dashboard lights on) with the engine off. For vehicles with keyless ignition, press and hold the Start button for about 5 seconds without touching the brake pedal. Use the steering wheel controls or driver information center (DIC) buttons to navigate to the Tire Pressure screen.

2.Activate the TPMS Relearn Mode:Listen for double horn chirps.

Press and hold the Set/Reset button (or the checkmark button on your steering wheel) while viewing the tire pressure screen. Hold it down for a few seconds until the horn chirps twice and the dashboard displays "Tire Learning Active". The driver's side front turn signal light will illuminate, indicating that the vehicle is ready to map that specific wheel.

3.Train the Driver's Front (LF) tire:The turn signal light guides you around the vehicle.

Move to the Driver's Front tire. Either hold your handheld GM TPMS activation tool against the tire sidewall right next to the valve stem and press the activation button, or manually let air out of the tire continuously. Within 10–15 seconds, the vehicle's horn will chirp once to confirm it has successfully read the new sensor ID.

4.Proceed around the vehicle in order:Always follow this clockwise pattern.

Look at the vehicle's exterior lights to see which corner is ready next. Follow this strict clockwise sequence:

  1. Move to the Passenger's Front (RF) tire (the passenger front turn signal will be lit) and activate or deflate until the horn chirps.

  2. Move to the Passenger's Rear (RR) tire and repeat.

  3. Finish at the Driver's Rear (LR) tire and repeat.

5.Confirm completion and adjust pressures:Re-inflate tires to your door jamb specifications.

After the final driver's side rear sensor is successfully paired, the vehicle's horn will sound a final double chirp and the dashboard message will disappear, indicating the training loop is complete. Turn the ignition off. Use a reliable pressure gauge to re-inflate all four tires back to the factory-recommended cold pressure levels listed on your driver's door jamb sticker.

1.Prepare the vehicle and dashboard menu:Engage the parking brake for safety.

Turn the ignition switch to the RUN position (dashboard lights on) with the engine off. For vehicles with keyless ignition, press and hold the Start button for about 5 seconds without touching the brake pedal. Use the steering wheel controls or driver information center (DIC) buttons to navigate to the Tire Pressure screen.
2.Activate the TPMS Relearn Mode:Listen for double horn chirps.

Press and hold the Set/Reset button (or the checkmark button on your steering wheel) while viewing the tire pressure screen. Hold it down for a few seconds until the horn chirps twice and the dashboard displays "Tire Learning Active". The driver's side front turn signal light will illuminate, indicating that the vehicle is ready to map that specific wheel.
3.Train the Driver's Front (LF) tire:The turn signal light guides you around the vehicle.

Move to the Driver's Front tire. Either hold your handheld GM TPMS activation tool against the tire sidewall right next to the valve stem and press the activation button, or manually let air out of the tire continuously. Within 10–15 seconds, the vehicle's horn will chirp once to confirm it has successfully read the new sensor ID.
4.Proceed around the vehicle in order:Always follow this clockwise pattern.

Look at the vehicle's exterior lights to see which corner is ready next. Follow this strict clockwise sequence:

  1. Move to the Passenger's Front (RF) tire (the passenger front turn signal will be lit) and activate or deflate until the horn chirps.

  2. Move to the Passenger's Rear (RR) tire and repeat.

  3. Finish at the Driver's Rear (LR) tire and repeat.
5.Confirm completion and adjust pressures:Re-inflate tires to your door jamb specifications.

After the final driver's side rear sensor is successfully paired, the vehicle's horn will sound a final double chirp and the dashboard message will disappear, indicating the training loop is complete. Turn the ignition off. Use a reliable pressure gauge to re-inflate all four tires back to the factory-recommended cold pressure levels listed on your driver's door jamb sticker.
