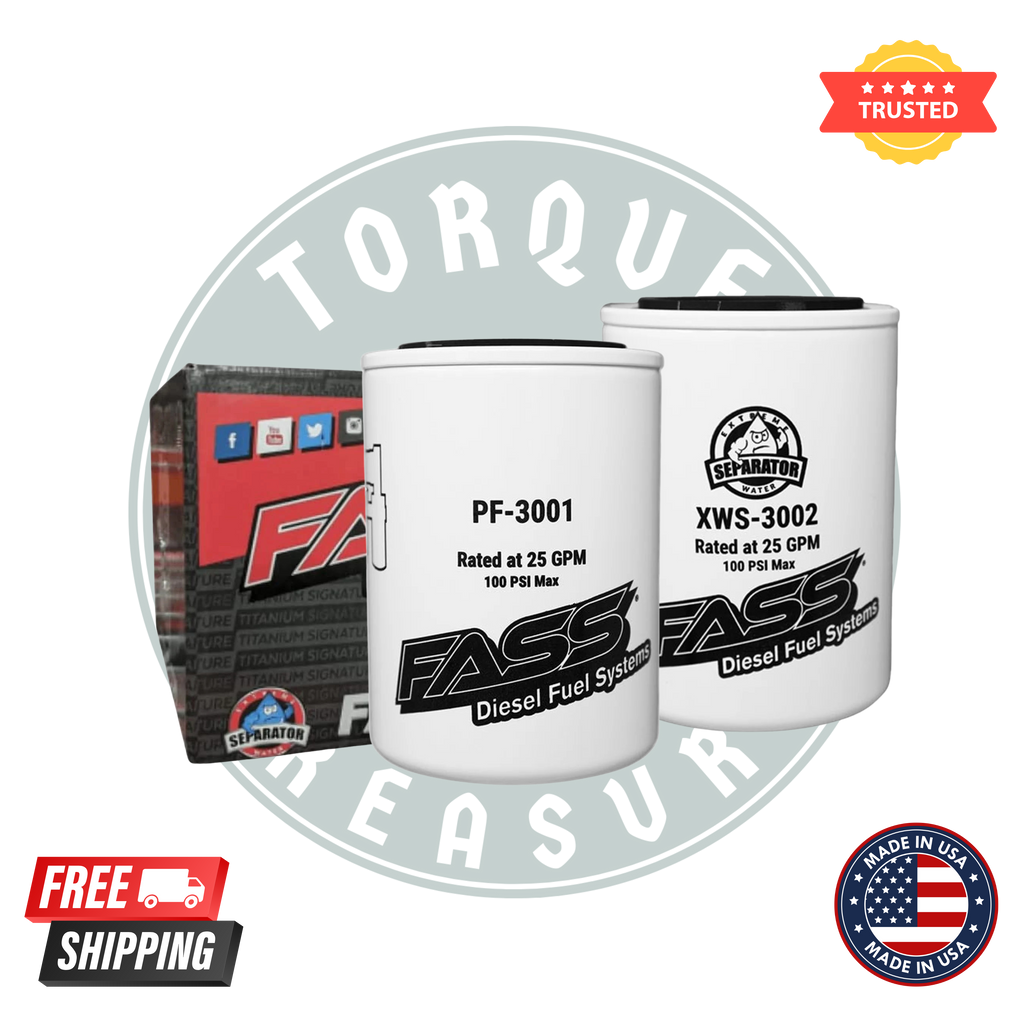

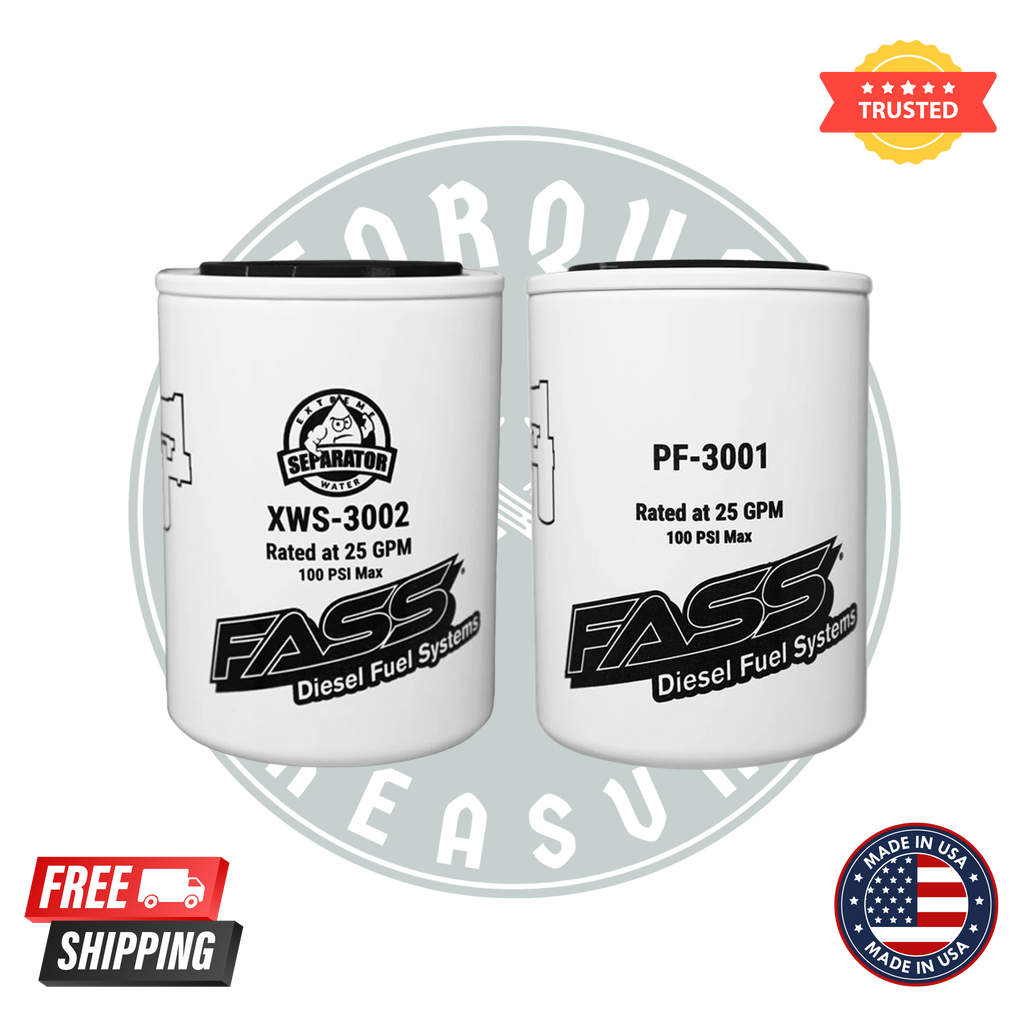

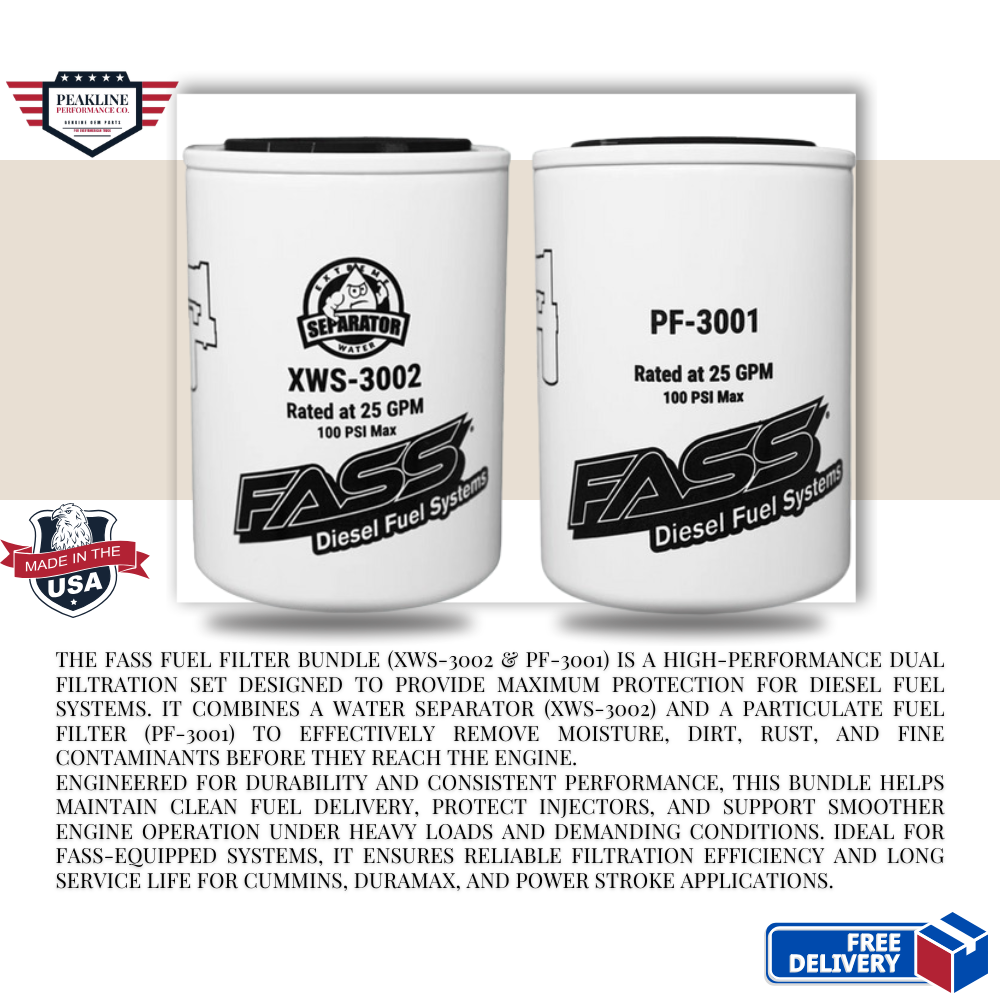

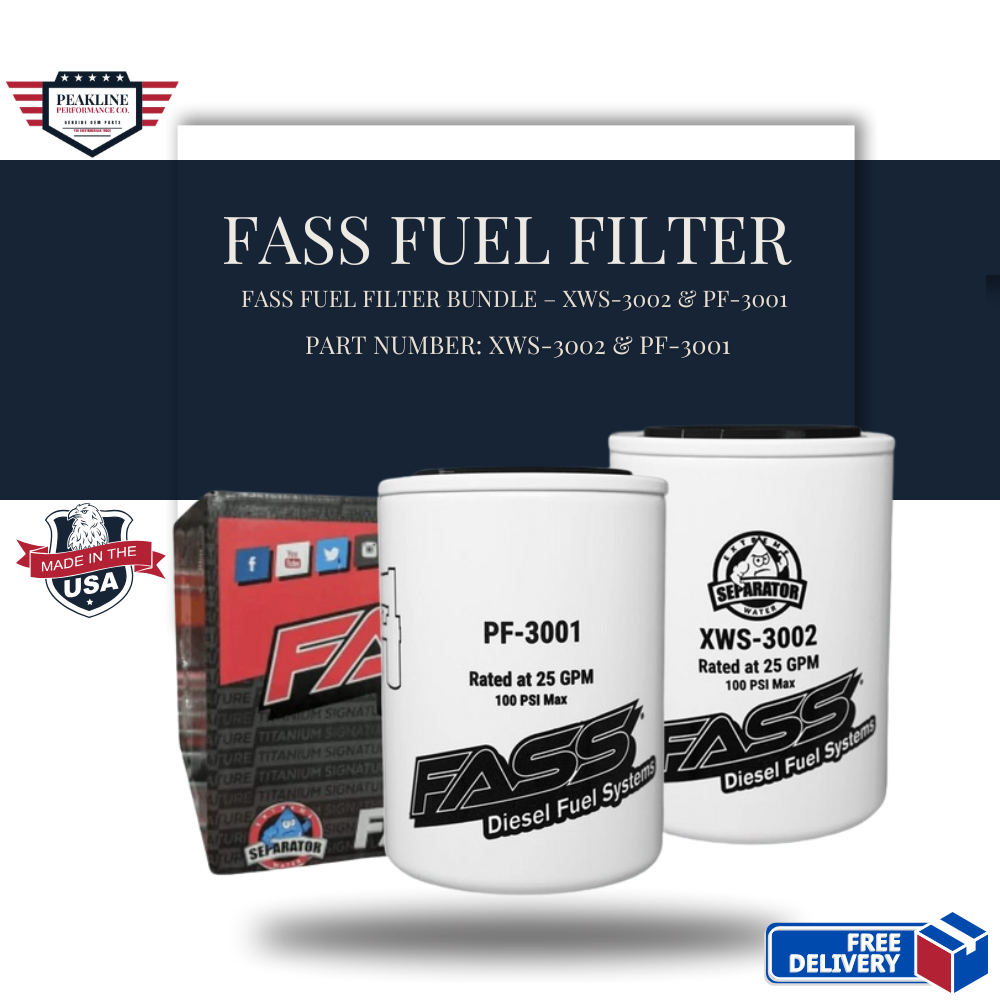

FASS Fuel Filter Bundle – XWS-3002 & PF-3001

FASS Fuel Filter Bundle: XWS-3002 + PF-3001
Genuine FASS Water Separator & Fuel Filter Combo

Upgrade your diesel fuel system with this FASS Fuel Filter Bundle, featuring the XWS-3002 Extreme Water Separator and PF-3001 Fuel Filter. Built for FASS Titanium, Titanium Signature, and Platinum Series systems, this combo delivers superior filtration, fuel flow, and protection.

What's Included:

• 1x FASS XWS-3002 Water Separator (20 Micron, Pre-filter)
• 1x FASS PF-3001 Fuel Filter (2 Micron, Post-filter)

Key Features:

• Genuine FASS filters trusted for high-performance diesel builds
• Extreme water separation and contaminant removal
• Extends fuel injector and pump life
• Direct fit for FASS fuel air separation systems
• Easy spin-on replacement, no modifications required
• Made in the USA

Vehicle Compatibility:
Fits diesel trucks with FASS Titanium, Titanium Signature, or Platinum Series systems, including:

• Dodge Ram 2500/3500 (6.7L Cummins)
• Ford Super Duty F-250/F-350 (6.7L Power Stroke)
• Chevy Silverado / GMC Sierra 2500/3500 (6.6L Duramax)

⚠️ Not compatible with older 95 Series or discontinued FASS models.

Cross Reference:

• XWS-3002 replaces: FASS XWS-1002 | Baldwin BF1259 | Donaldson P551311
• PF-3001 replaces: FASS FF-1003 | Baldwin BF7633 | Donaldson P551315 | Fleetguard FF5320

Shipping: Ships in 1–2 business days, tracked, securely packaged.

Clean Fuel. Longer Life. Built for Power.

❓ Quick FAQ

Which FASS pumps is this bundle for?
Aftermarket FASS Titanium, Titanium Signature, and Platinum Series lift pumps across Cummins, Power Stroke, and Duramax platforms. Not backward-compatible with older 95 Series units.

Why different micron ratings, and which side goes where?
The XWS-3002 (20-micron) mounts on the suction side to strip water and larger debris before the pump. The PF-3001 (2-micron) mounts on the pressure side as a final fine filter protecting the injection pump and injectors.

How do I swap these filters?

1. Place a catch pan under the pump and pull the FASS fuse to disable it.
2. Unscrew both old filters with a strap wrench and drain them.
3. Clean the mounting studs and confirm old gaskets came off.
4. Pre-fill the PF-3001 with diesel (not the XWS-3002); lubricate both seals.
5. Hand-thread the new filters on, then tighten an additional 3/4–1 turn.
6. Re-fuse the system, cycle the ignition to prime it, then check for leaks before driving.
