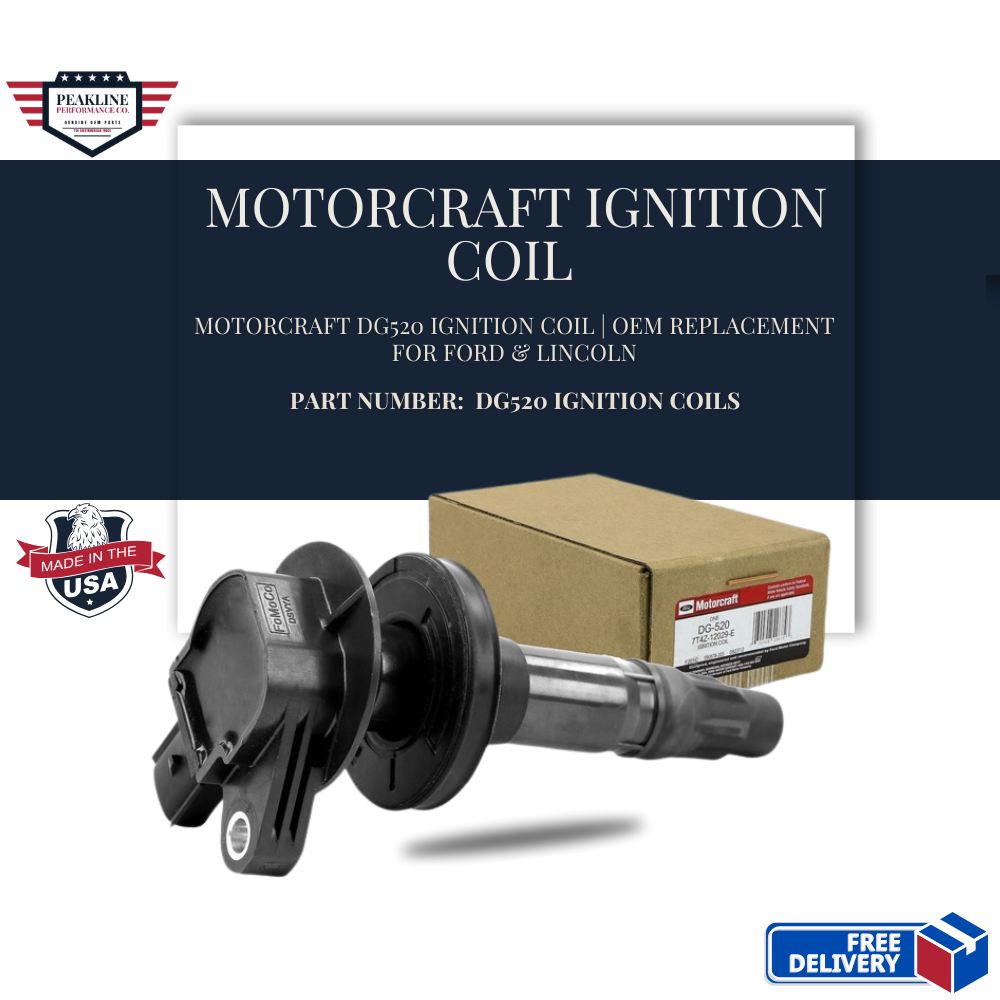

Motorcraft DG520 Ignition Coil | OEM Replacement for Ford & Lincoln
Motorcraft DG520 Ignition Coil | OEM Replacement for Ford & Lincoln

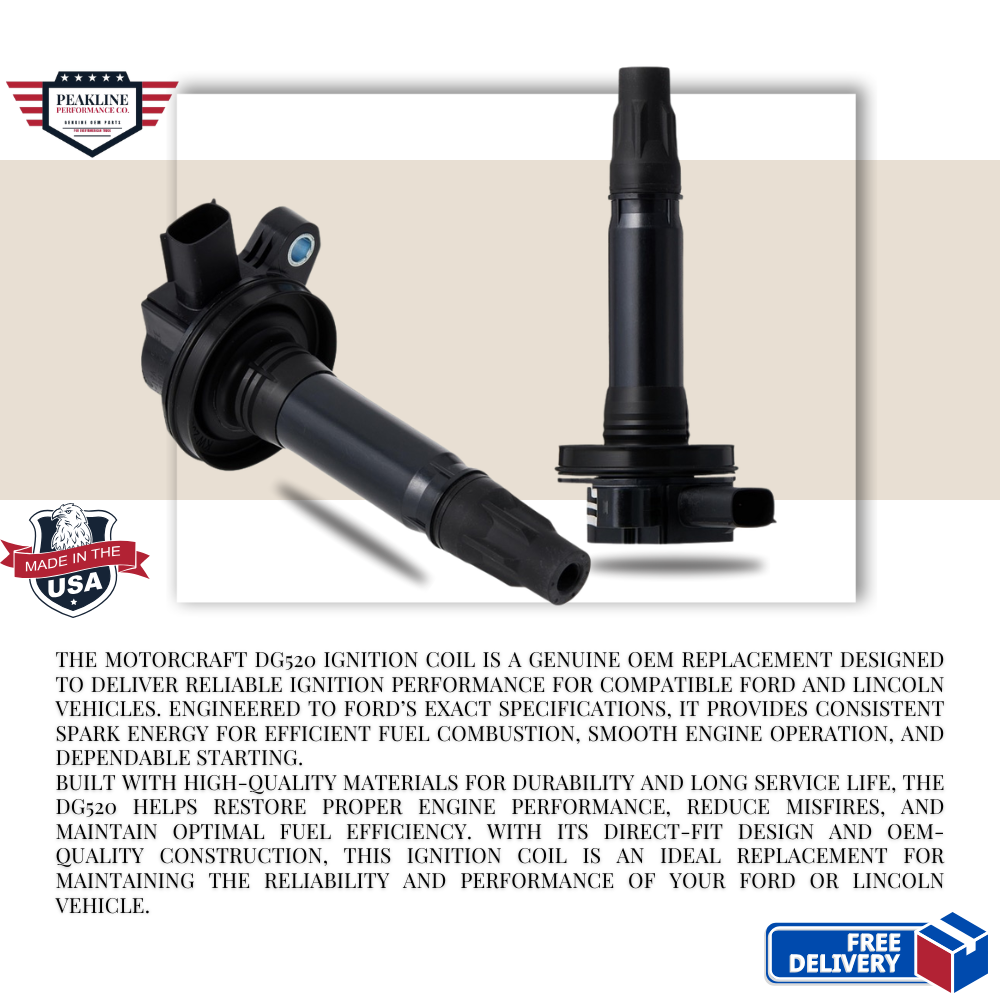

Restore your engine’s performance with the Motorcraft DG520 Ignition Coil. Engineered by Ford Motorcraft for durability and precision, this OEM coil delivers reliable ignition, smooth acceleration, and long service life. Perfect replacement for worn or failing coils.
Features & Benefits
- ✅ Genuine Motorcraft OEM ignition coil for Ford & Lincoln vehicles
- ✅ Provides strong spark and consistent ignition performance
- ✅ Improves fuel economy, throttle response, and reliability
- ✅ Built to resist heat, vibration, and wear
- ✅ Direct-fit replacement designed to Ford’s exact standards
Vehicle Compatibility
The Motorcraft DG520 ignition coil fits select Ford & Lincoln vehicles, including:
- Ford F-150 (4.6L / 5.4L Triton V8)
- Ford Expedition, Explorer, E-Series (select models)
- Lincoln Navigator, Mark LT
(Please confirm exact fitment with your owner’s manual or OEM part number.)
Cross Reference
- C1584
- C1541
- 601000
- IC508
(Cross references are for reference only. Verify before purchase.)
What’s Included
- 1 × Genuine Motorcraft DG520 Ignition Coil
Why Buy From Us
- 🔧 100% Genuine Motorcraft Product
- 🚙 OEM Fitment for Ford & Lincoln Vehicles
- 🚀 Fast USA Shipping & Easy Returns
- ✅ Trusted Auto Parts Supplier
❓ FAQ
Q: Is the Motorcraft DG520 compatible with all Ford modular engines, and how can I confirm it is the correct part for my specific Triton V8?
A: While the DG520 is one of the most widely used ignition coils for Ford's modular engines, it is not a "one-size-fits-all" solution. It is designed specifically for the 3-Valve Triton 4.6L and 5.4L engines that utilize the two-piece spark plug design (pre-2008 in many models). Ford transitioned to different coil designs (like the DG511) in later model years. The most accurate way to verify fitment is to check the part number printed directly on the top of one of your existing ignition coils or to verify your specific engine build date using your VIN.
Q: How does a failing ignition coil impact my vehicle's long-term engine health, specifically regarding the catalytic converters?
A: An ignition coil that is failing or misfiring is not just a drivability nuisance; it is a major threat to your exhaust system. When a coil fails to ignite the fuel in a cylinder, that raw, unburnt gasoline is pushed out of the combustion chamber directly into the exhaust manifold. This fuel then hits the extremely hot ceramic catalytic converter, where it ignites. This can cause the internal temperature of the converter to skyrocket, potentially melting the internal honeycomb structure. Replacing a $50–$100 ignition coil promptly is significantly cheaper than replacing a $1,000+ catalytic converter damaged by chronic misfires.
Q: What are the professional installation steps to ensure the DG520 provides a moisture-proof seal?
A: The primary enemy of the DG520 coil is moisture ingress into the spark plug well. Ford's modular engines have deep wells that trap water from rain or engine bay washing, which can short out the coil boot. Follow this procedure to ensure a secure, sealed installation:
Ensure the engine is cool. Disconnect the electrical connector by pressing the locking tab. Use a 7mm socket to remove the single bolt holding the coil to the valve cover. Gently pull the coil pack straight up and out. Inspect the rubber boot for any white or black powdery residue (carbon tracking); if present, it confirms the old coil was arching to the side of the cylinder head.
Before installing the new coil, use a shop vacuum or compressed air to blow out the spark plug well. Any debris left behind can prevent the coil boot from seating fully, allowing moisture to enter the well later. Verify the spark plug itself is tightened to the correct torque specification before proceeding.
Apply a small, pea-sized amount of dielectric grease inside the bottom tip of the new DG520's rubber boot where it snaps onto the spark plug. This is crucial—it creates an airtight, moisture-proof seal and prevents the rubber from fusing to the ceramic spark plug over time, which makes future replacements much easier.
Align the new coil with the spark plug and press it straight down firmly. You should feel it "click" or seat onto the spark plug terminal. If it feels like it is pushing back, verify that the boot hasn't folded or kinked. Ensure the mounting hole on the coil lines up perfectly with the bracket on the valve cover.
Reinstall the 7mm bolt and tighten it until it is "snug." Because you are threading into a plastic or aluminum cover, it is very easy to strip these threads—do not use an impact gun. Reconnect the electrical harness until you hear a clear click, ensuring the locking tab is fully engaged.
Start the engine and verify it runs at a smooth, steady idle. If you previously had a Check Engine light, use an OBD-II scanner to clear the stored misfire codes. Take the vehicle for a brief drive to confirm the previous hesitation or stumble has been fully resolved.
